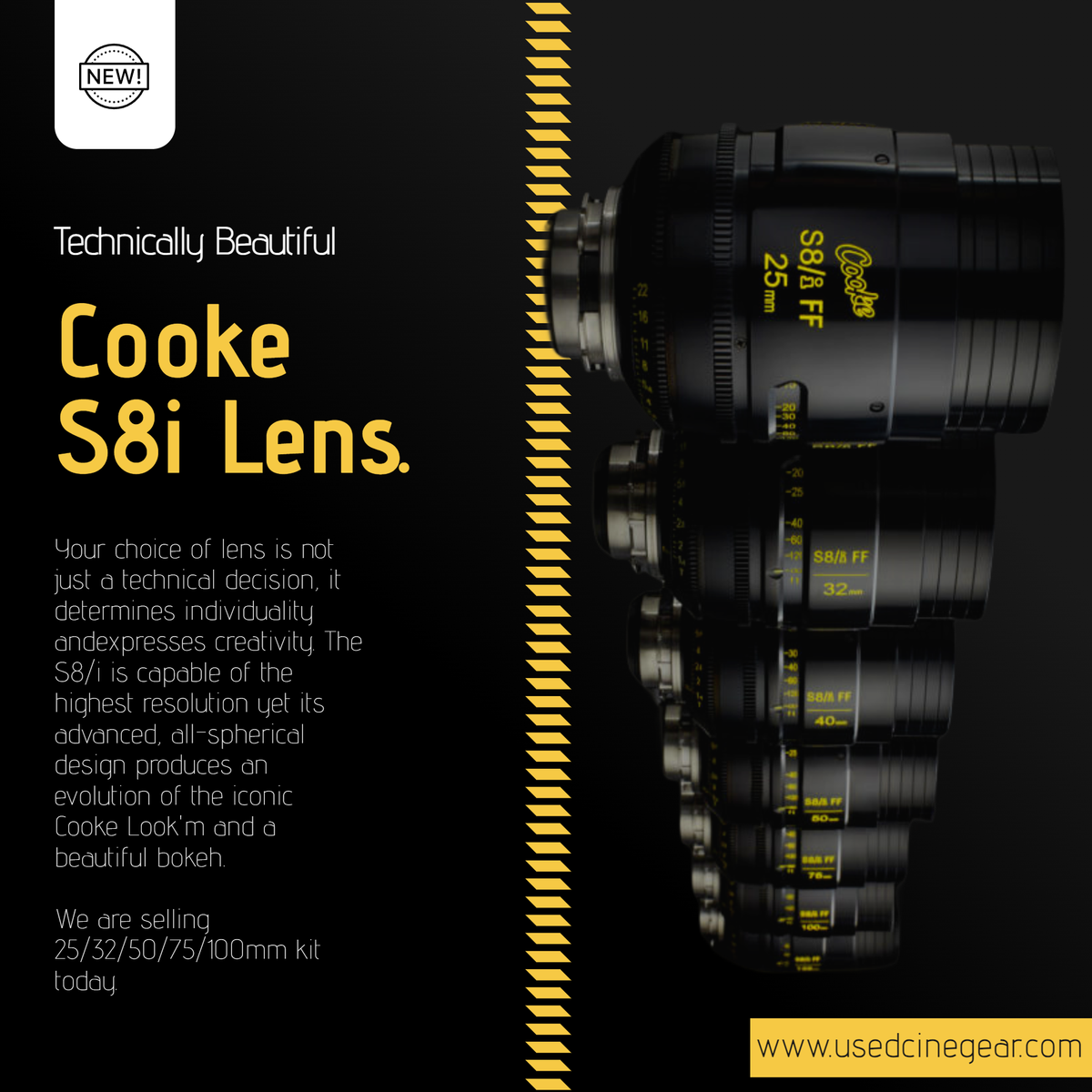

Shoot full frame cine images at a wide-open T1.4, while bringing that renowned "Cooke Look" to your images with the S8/i Full Frame Plus T1.4 Prime Lens from Cooke. Cooke's S8/i lens set feature a PL mount for rock-solid mounting, the lens shares consistent focus and iris gear positions across the S8/i lineup for fast lens swaps while optically providing a warm, wide-angle lens feel for shots with an organic feel that do not sacrifice sharpness. Shooting at T1.4 allows you to get an extra stop of exposure when shooting in dim conditions or chasing that last shot of the day.
Designed to cover full frame cinema camera sensors and suitable for studio, location, handheld, stabilizer, and drone shooting. The lens is color-matched to other Cooke lenses, and it has focus markings on both sides of the lens. The PL mount incorporates i/Technology contacts that feed lens information metadata to compatible cameras, including focus distance, aperture, and depth of field. A cam-type focus mechanism with a large lens barrel diameter allows for precision focus markings, especially at close focus, while the 9-leaf iris is marked in whole and thirds of a stop for accurate exposure.
Compatibility
All S8/i FF lenses have a common fixed front diameter of 104mm, with a focus drive gear of 140T x 0.8 MOD and an iris drive gear of 134T x 0.8.
Mount
This lens is delivered in an ARRI PL mount, which can be adapted to an ARRI LPL mount via an optional adapter. The lens is available in a native ARRI LPL mount by special order.
Optical Design
The optics feature controlled flaring, low distortion, and limited spherical aberration, and they are color balanced to match the profile of other Cooke cinema lenses so they can fit right into your existing kit.
Focus Movement
The lens features an Academy Award-winning cam-style focus movement coupled with the benefit of a large lens barrel diameter, which allows for an increased number of focus markings, particularly at close focus. A four-point contact bearing also provides smooth positive backlash-free movement.
Precision Focus Marks
Every focus mark throughout the 270° focus rotation is individually calibrated and engraved on both sides of the focus barrel for precise focus pulls in feet or meters.
Iris
Cooke S8/i FF lenses have a 9-leaf linear iris with a maximum aperture of T1.4 across the majority of the lens lineup. This allows for greater control over depth of field and flare characteristics while still providing excellent low-light performance.
/i Electronics
The S8/i FF lenses also feature the latest Cooke /i lens data technology that provides focus and iris position as well as motion/inertia, mapping, shading, distortion, and calibration data. It is accessible via a cable connector near the lens mount and synchronizes with /i compatible cameras and accessories. The electronics board has also been resized and repositioned for easy serviceability.
Weight/Size Ratio
The lenses are designed for all shooting applications, including handheld, stabilizer, and even drone work, providing a comfortable balance ratio with the latest compact digital cinema cameras.
Exterior Finish
Every Cooke lens is coated with a scratch-resistant PTFE hard-anodized finish that provides a durable, hard-wearing surface to meet the most demanding environmental conditions.
